# Tech Stack

The **Reputation Hook Contract Project** is built using a robust and carefully selected technology stack. It leverages low-level libraries, efficient contract design patterns, gas optimizations, and thorough testing to ensure both security and scalability. This section provides a comprehensive overview of the technical underpinnings, including contract sizes, bitmap usage, gas optimizations, and the separation of concerns enabled by **Reputation Logic**. Here's a closer look at the core components:

### **Low-Level Libraries**

The project incorporates a range of low-level libraries, which are designed to optimize contract performance and ensure efficient execution, particularly in gas-heavy environments like Ethereum.

<figure><img src="https://3386345092-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQZ0jtCbwIiVto0eJQ3Mx%2Fuploads%2FzlcrCI6ZjmKrJiplDL6k%2Fmetapool-techstack.png?alt=media&#x26;token=ef17bd37-b1b2-4da1-bbac-21ac1894676d" alt=""><figcaption></figcaption></figure>

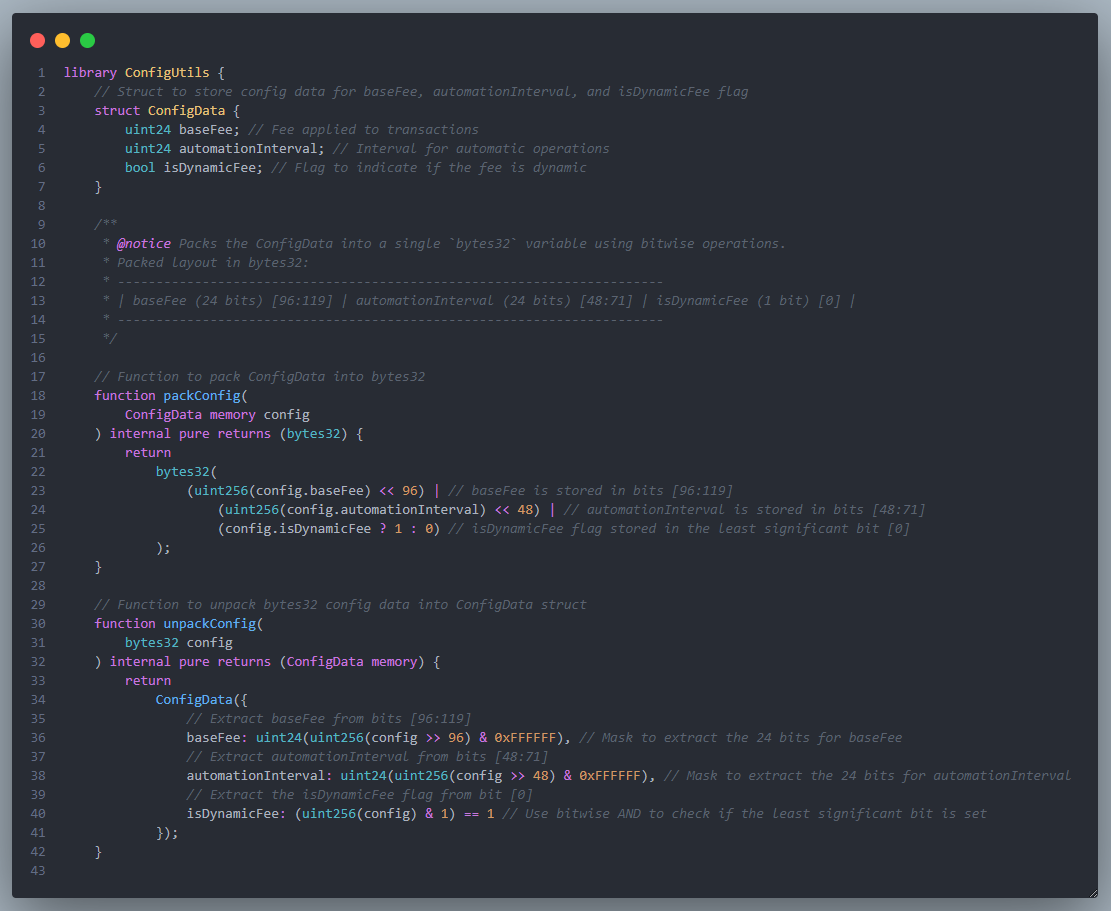

* **Contract Sizes**:
  * The main contracts, **MetaPool** and **ReputationLogic**, are highly optimized, with their size kept under limits to prevent exceeding block gas limits and keep deployment costs low.
  * These optimized sizes ensure that contract deployment is efficient, even with large systems of interconnected pools and hooks.

<figure><img src="https://3386345092-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQZ0jtCbwIiVto0eJQ3Mx%2Fuploads%2F4qtxtoCviHULjsvbsqu2%2Fmetapool-techstack-2.png?alt=media&#x26;token=0a85c123-b44e-4d96-a70c-c8ee1726f4de" alt=""><figcaption></figcaption></figure>

* **Bitmap Optimization**:
  * **Bitmap storage** is employed to track the state of pools, user activity, and overall reputation within the system, reducing the cost of accessing multiple mappings and instead allowing batch operations on a single storage word.
  * Example: Tracking up to 256 pools in a single word reduces storage costs significantly compared to using a separate mapping for each pool.

<figure><img src="https://3386345092-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FQZ0jtCbwIiVto0eJQ3Mx%2Fuploads%2Fc8qXszam2Mi828Fmxa1E%2Fmetapool-tech-3.png?alt=media&#x26;token=ed4acc9f-2e2b-4371-a7bd-43ef1de257f4" alt=""><figcaption></figcaption></figure>

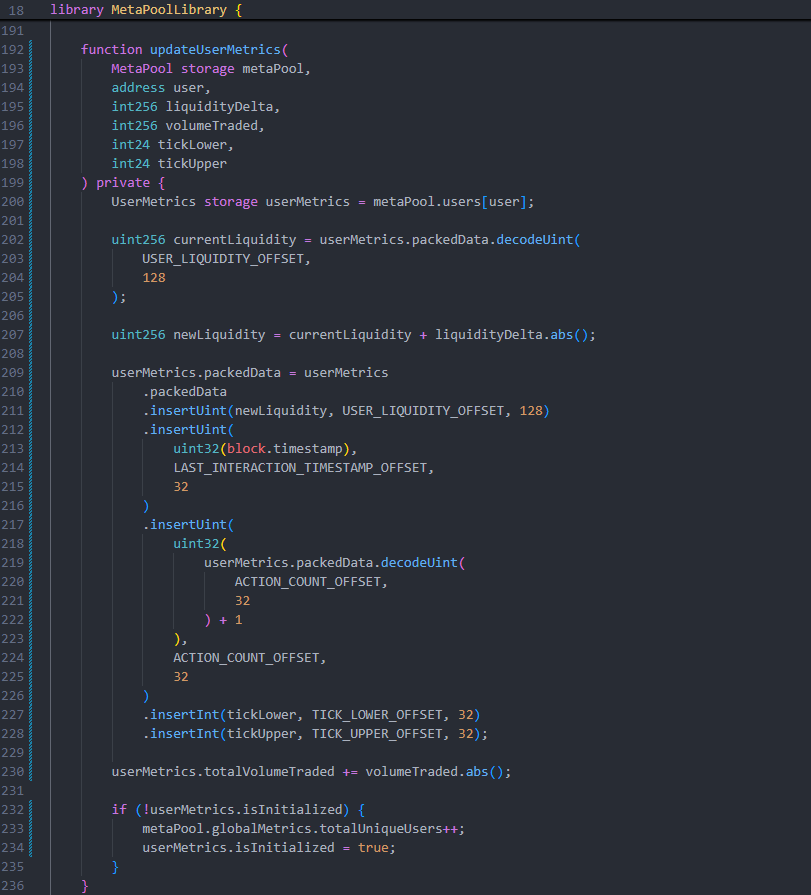

* **Gas-Optimized Hook Execution**:
  * By utilizing **beforeSwap** and **afterSwap** hooks, gas usage is minimized by bundling multiple pool updates and reputation checks into a single call.
  * **Gas Savings**: Replacing multiple read and write operations with batched updates using the **MetaPool Library** reduces gas per transaction, making the system scalable even for complex liquidity strategies.
* **Unblocking Flow Through Reputation Logic**:
  * The **Reputation Logic** contract introduces a separation of concerns, ensuring that user reputation calculations are offloaded to separate contracts, minimizing the impact on the core liquidity pool.
  * **Unblocking Flow**: By using off-chain computations (via Brevis), reputation updates do not block or delay on-chain liquidity operations. This ensures that users can interact with liquidity pools in real-time, even when complex reputation calculations are being processed in the background.

```
  ├─ [445236] 0xaD1A161142DC747f47De724F748444D35eE62650::performUpkeep(0x)
    │   ├─ [445061] ReputationLogic::performUpkeep(0x) [delegatecall]
    │   │   ├─ emit ReputationUpdateBatchEmitted(batchId: 86884260856199153866334879381415440615693346100533887595885188063103080643154
[8.688e76], nonce: 2, users: [0x343E2e8DA3339EE4946CDCaf8b797192bCe50bA9], updatesToProcess: 1, swapInfoHashes: [0x2b429e4eab6541b4beccc7b602371aa993f406b84ccf73c8867b6d83cb135f94],
tickInfoHashes: [0x308444febab250095893c1e1841e20e09069dfd103bd7c8538ffde11443240af], tokenInfoHashes: [0x030c6288b28bc8aaf9e399b58b81710050cf1c2457caac36f3f7ecec520a64b7],
metricsInfoHashes: [0xeccae8a648a17579c67a3de5d1d92478a49c40cd34b5f72077db7799220e3f47], hookAddress: ReputationHook: [0x5c9A009485C55894d2d3430cCE5783B8d031FdCc])
    │   │   ├─ [2942] ReputationOracle::getRequiredFee() [staticcall]
    │   │   │   └─ ← 10000000000000000 [1e16]
    │   │   ├─ [122448] ReputationOracle::initiateReputationUpdateBatch{value: 10000000000000000}(86884260856199153866334879381415440615693346100533887595885188063103080643154
[8.688e76], 2, 31337 [3.133e4])
    │   │   │   ├─ emit ProofRequestInitiated(requestId: 0x517f65e58a58f4e0294f17597317388e5bef5f15b4f4d98980eb5ecc58c0ec93, chainId: 31337 [3.133e4], reputationLogic: 0xaD1A161142DC747f47De724F748444D35eE62650)
    │   │   │   └─ ← 0x517f65e58a58f4e0294f17597317388e5bef5f15b4f4d98980eb5ecc58c0ec93
    │   │   └─ ← ()
    │   └─ ← ()
    ├─ [1107] 0xaD1A161142DC747f47De724F748444D35eE62650::getUpdateQueueLength() [staticcall]
    │   ├─ [941] ReputationLogic::getUpdateQueueLength() [delegatecall]
    │   │   └─ ← 0
    │   └─ ← 0
```
